CCG11型瓶形高功率瓷介电容器
更新日期:2014-12-02发布人:zhangfan 点击次数:2811
![](/up/image/20141225/20141225154674377437.jpg)
型号 TYPE |
标称电容量 CAP VALUE |
额定电压 RATED VOLTAGE |
无功功率 REACTIVE POWER |
最大电流 MAX CURRENT |

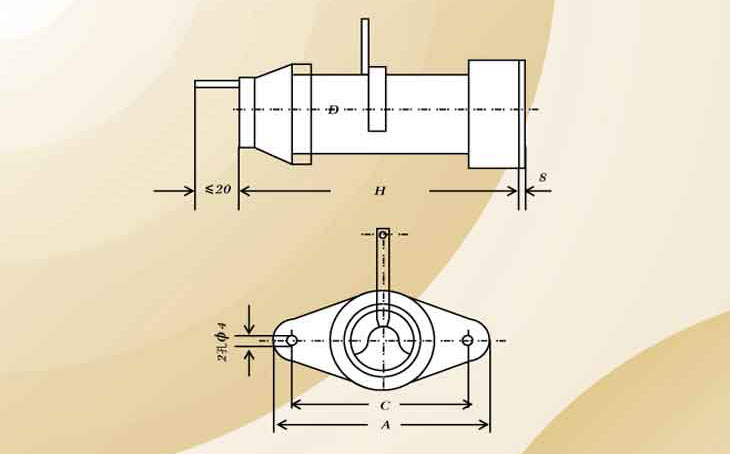

主要尺寸(mm) DIMENSIONS |
||||
(PF) | DC | HF(RMS) | (KVA) | (A) | D | H | A | C | |
CCG11-1 | 680 | 8 | 5 | 10 | 10 | 65 | 80 | 80 | 68 |
1000 | 8 | 5 | 10 | 10 | 65 | 90 | 80 | 68 | |
1500 | 8 | 5 | 10 | 10 | 65 | 93 | 80 | 68 | |
CCG11-2 | 470 | 5 | 4 | 8 | 8 | 45 | 70 | 62 | 50 |
680 | 5 | 4 | 8 | 8 | 45 | 78 | 62 | 50 | |
1000 | 5 | 4 | 8 | 8 | 45 | 90 | 62 | 50 | |
1500 | 5 | 4 | 8 | 8 | 45 | 95 | 62 | 50 |
